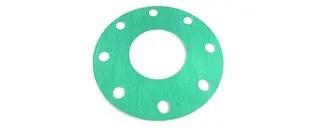

Non-Metal Sealing ASME B16.21 RF/FF Non-Asbestos Gaskets: A Safer, High-Performance Sealing Solution

Introduction

Non-metal sealing ASME B16.21 RF/FF non-asbestos gaskets have become increasingly important in mechanical engineering and industrial applications. These gaskets offer a safe, reliable alternative to traditional asbestos-containing solutions, eliminating serious health risks associated with asbestos fibers. This article explores their evolution, features, benefits, applications, and the growing significance of non-asbestos gaskets across industries.

1. Historical Perspective and Gasket Evolution

Gaskets have been used for centuries to seal joints and prevent leakage in mechanical systems. Early gaskets were made from organic materials such as leather, cloth, and rubber, which provided basic sealing but had limited resistance to high temperatures and pressures.

The 20th century saw the introduction of asbestos gaskets, valued for their durability and heat resistance. While effective, asbestos use later became restricted due to severe health risks, including lung cancer, mesothelioma, and respiratory illnesses.

In response, industries transitioned to non-asbestos materials in the 1970s and 1980s. Materials such as aramid fibers, mineral fibers, cellulose, and synthetic elastomers replaced asbestos, offering similar sealing properties with enhanced safety and environmental compatibility.

The ASME B16.21 standard formalized specifications for non-metallic gaskets, ensuring consistent quality, dimensions, and performance in flanged joints. Today, non-metal sealing ASME B16.21 RF/FF non-asbestos gaskets are widely adopted as safer, high-performance alternatives in industrial sealing applications.

2. Features and Key Properties

Composition:
Non-asbestos gaskets are made from aramid fibers, cellulose fibers, mineral fibers, synthetic fibers, and elastomers, carefully engineered to provide optimal sealing without health hazards.

Heat Resistance:
They withstand temperatures ranging from -100°C (-148°F) to 550°C (1022°F), depending on the material, ensuring reliability in extreme conditions.

Chemical Resistance:
These gaskets resist oils, acids, alkalis, solvents, and refrigerants, making them suitable for oil and gas, petrochemical, pharmaceutical, and food processing industries.

Sealing Performance:
Low gas and fluid permeability, combined with excellent compression and recovery, ensures long-lasting, leak-free performance even after repeated use.

Types of Non-Asbestos Materials:

1. Aramid Fiber (e.g., Kevlar®): High tensile strength, heat resistance up to 400°C (752°F); ideal for steam, oil, and gas applications.

2. Mineral Fiber (e.g., glass fibers): Thermal stability up to 550°C (1022°F); used in high-temperature fluid and gas systems.

3. Synthetic Fibers (e.g., Nitrile, EPDM, Neoprene): Resistant to oils, fuels, and solvents; suitable for industrial and automotive applications.

4. Cellulose Fiber: Cost-effective, moderate temperature resistance up to 200°C (392°F); used where chemical resistance and affordability are priorities.

3. Advantages and Benefits

Safety:
Eliminates asbestos-related health risks, protecting workers during installation, maintenance, and removal.

Environmental Friendliness:
Non-asbestos materials reduce toxic emissions and are easier to dispose of, lowering environmental impact.

Sealing Efficiency:
Ensures reliable, long-lasting seals in high-pressure applications, minimizing leaks, equipment damage, and downtime.

Chemical Resistance:
Suitable for aggressive industrial environments, maintaining seal integrity against oils, acids, alkalis, and solvents.

High-Temperature Resistance:
Maintains mechanical properties and sealing performance across a broad temperature range.

Cost-Effectiveness:
Though initial costs may be slightly higher than asbestos gaskets, longer lifespan, reduced maintenance, and minimized liability result in overall savings.

4. Case Studies and Applications

Oil and Gas Industry:
Used in offshore drilling flanges, these gaskets prevent leaks of oil and gas while resisting high temperatures and corrosive environments, enhancing worker safety and environmental protection.

Chemical Industry:
Non-asbestos gaskets seal pumps, valves, and reactors, resisting aggressive chemicals and minimizing downtime and maintenance costs.

Power Generation:
Critical in flanged joints of boilers, turbines, and heat exchangers, these gaskets maintain sealing performance under high-temperature, high-pressure conditions.

Automotive Industry:
Applied in engines, transmissions, and exhaust systems, offering reliable sealing against oils, fuels, and other automotive fluids.

Conclusion

Non-metal sealing ASME B16.21 RF/FF non-asbestos gaskets provide safer, eco-friendly, and high-performance sealing solutions across diverse industries. They combine chemical and heat resistance, durability, and compliance with industry standards, ensuring reliable operation while protecting workers and the environment. Ongoing research and technological development in non-asbestos materials promise to further enhance performance and adoption, paving the way for safer, more sustainable industrial sealing solutions.
